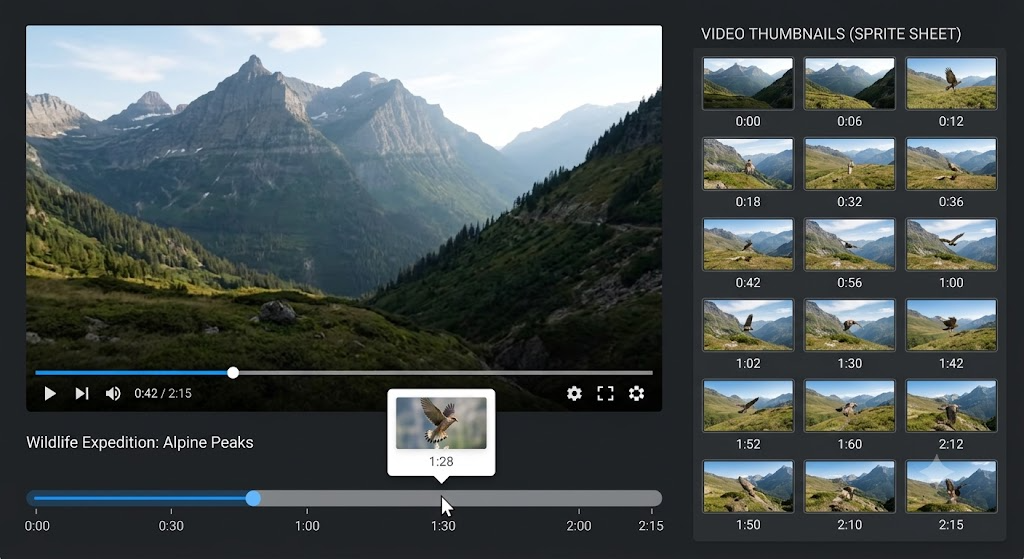

Implementing trick-play thumbnails with FFmpeg sprite sheets and WebVTT
This article outlines an efficient technical method for implementing trick-play scrub bar thumbnails using FFmpeg to generate sprite sheets combined with WebVTT metadata files. By shifting from high-frequency individual thumbnail requests to a single cached sprite sheet, developers can significantly reduce latency and optimize resource usage in players like Video.js and Shaka Player.
Key Takeaways
- FFmpeg versions 7.1 and 8.0.2 allow single-command generation of tiled sprite sheets using filter chains like 'fps=1/10,scale=160:-1,tile=10x10'.
- WebVTT metadata with media-fragment suffixes (#xywh) identifies specific thumbnail coordinates within the larger sprite sheet.
- Browser texture limits, typically capped at 16,000 to 32,000 pixels per side, require splitting long-form video storyboards into multiple image files.
- Interval misalignment between frame extraction and VTT cues causes visual drift, particularly in longer video durations.
Why It Matters
Sprite sheets convert high-frequency HTTP requests into steady, cacheable assets, providing the 'instant' UI feedback users expect from tier-one platforms like YouTube. This methodology leverages standard WebVTT tracks already supported by modern HTML5 players, making trick play an incremental addition rather than a structural overhaul. As platforms look to increase watch time and user retention, reducing friction during content discovery remains a low-effort, high-impact performance optimization. Watch for increased adoption of WebP for these sprites to further reduce egress costs.
Additional Context
The transition toward highly optimized trick-play assets reflects a broader industry shift toward minimizing client-side overhead in streaming environments. While the featured command utilizes local FFmpeg processing, enterprise providers like Mux have standardized this 'storyboard' approach since late 2020, offering automated sprite generation and VTT indexing as a core API feature to reduce the complexity of DIY pipelines. According to recent technical audits from Forasoft in September 2024, custom player UIs built on open-source libraries like Shaka Player and Video.js prioritize these metadata-driven features to bridge the UX gap between boutique platforms and major streamers. The underlying technology, WebVTT, continues to undergo standardization, maintaining its role as the primary serialisation format for time-aligned video data. Per W3C’s Candidate Recommendation updates in May 2026, the specification increasingly caters to metadata beyond simple captions, including chapter markers and image-fragment indexing. This stability is critical as browsers enforce stricter resource budgets. For instance, recent performance benchmarks from Sizeim in December 2025 highlight that sprite sheets remain the most efficient way to deliver lightweight motion on lower-end mobile devices, as they rely on hardware-accelerated background positioning rather than the higher CPU demands of video-based seeking. Furthermore, the release of FFmpeg 8.1 “Hoare” in March 2026 introduced further optimizations in the scaling and filtering infrastructure, particularly for hardware-accelerated encoders on Vulkan and D3D12. These updates allow platforms to generate multiple storyboard resolutions alongside primary transcoding jobs without significantly extending the processing window. Industry data suggests that as AV1 and VVC gain traction, the accompanying trick-play assets are increasingly delivered as WebP or AVIF files, which, according to recent platform specs from January 2026, can reduce the storage and delivery footprint of a storyboard by 20% to 30% compared to legacy JPEG grids.
